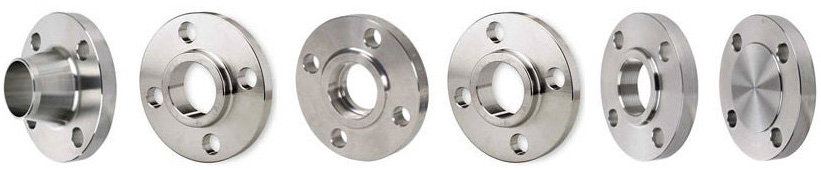

Jayant Impex is acknowledged as a manufacturer, exporter & suppliers of API 6A Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These API 6A Flange are manufacture in different Type of Flanges like Blind Flange, Spectacle Blind Flange, Slip On Flange, Socket Welding Flange, Welding Neck Flange, SORF Flanges, Collar Flange, Plate Flange, Raised Face Flange, Flat Face Flange, SWRF, WNRF, BLRF, Lapped Joint Flange, Ring Type Joint Flange, Threaded Flange & Long Welding Neck Flange, conform to API 6A specifications.
API 6A Flange Price:
Forged/forging api 6a Thread flange
US $1-100 / Piece ( FOB Price)
API 6A Competitive price weld neck flange
US $100-340 / Piece ( FOB Price)
API 6A Flange Type
|
|
|
|
|
|
|
|
|
|
|
|
|
Description of API 6A Flange
- Type: Welding neck Flanges, Blind Flanges with Ring Joint Connetction
- Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
- Standard: API 6A
- Size: 1-13/16″ to 21-1/4″
- Pressure: 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi
- Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
- Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
- E-catalogue: Available , please visit catalogue of flange
- Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Type 6B flanges: Type 6B flanges are of the ring joint type and are not designed for face-to-face make-up. The connection make-up bolting force reacts on the metallic ring gasket. Type 6B flanges are of through bolted or studded design. Dimensions for 6B flanges blind type shall conform to Table 36, Table 37 & Table 38 with reference to figure no. 8 on pg. no. 108 of API 6A (19 th Edition, July 2004) as applicable.
Type 6BX flanges: Type 6BX flanges are of the ring joint type and designed with a raised face. Depending on the tolerances, the connection make-up bolting force may react on the raised face of the flange when the gasket has been properly seated. This support prevents damage to the flange or gasket from excessive bolt torque. Therefore, one of the flanges in 6 BX connection shall have a raised face. Type 6BX flanges are of through bolted or studded design. Face-to-face contact is not necessary for the proper functioning of the 6BX flange. Dimensions for 6BX flanges blind type shall conform to Table 46 of API 6A (19 th Edition, July 2004) as applicable.
Technical Information – Specification, Dimension API 6A Flanges
- API 6A Type 6B 2000 PSI Weld Neck & Blind Flanges Dimensions
- API 6A Type 6B 3000 PSI Weld Neck & Blind Flanges Dimensions
- API 6A Type 6B 5000 PSI Weld Neck & Blind Flanges Dimensions
- API 6A Type 6BX 2000 PSI Blind Flanges Dimensions
- API 6A Type 6BX 3000 PSI Blind Flanges Dimensions
- API 6A Type 6BX 5000 PSI Blind Flanges Dimensions
- API 6A Type 6BX 10000 PSI Blind & Weld Neck Flanges Dimensions
- API 6A Type 6BX 15000 PSI Blind & Weld Neck Flanges Dimensions
- API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges Dimensions
API 6A Flanges
View More About API 6A Flange
API Flange Dimensions
